ICEN (Made in Korea) 移動空調實質上是把普通空調的內外機合成一體的空調,沒有室外機,不需要專業安裝,通過壓縮機的製冷,利用排風管排出熱風,機體內壓縮機、排風機、電熱器、蒸發器、風冷翅片式冷凝器等裝置一應俱全,機身配有電源插頭,機殼底座安裝了四個萬向腳輪,可使空調隨心所移,達到局部區域降溫的效果。
不需連績供水,散熱器接駁水喉可延至30m,解決室內排廢熱問題,合辨公室/電腦房冷源補充
ICEN Mobile Air-conditioner Model WSC-4000 (水冷式散熱) 冷量:1.8HP -Cooling capacity: 16000BTU/1.1RT/4.8kW -Power Supply: 220V/1P/50Hz -Size: 705x865x350(565x405x275)mm -Weight: 91 Kgs -Current Consumption: 10.0 Amps -Power Consumption: 2.2 kW -Air Filter (Material): Vinyl Chloride -Refrigerant: R410a/900g -Operating range(room): 18-45C -Fan Speed: 2 step -Noise level at 3m: 56/52 dBA -Hose length (Standared): 10m -Hose length (Max.): 30m ICEN Mobile Air-conditioner
Model WSC-6000 (水冷式散熱) 冷量:2.4HP -Cooling capacity: 22000BTU/1.8RT/6.5kW -Power Supply: 220V/1P/50Hz -Size: 705x865x350(665x445x275)mm -Weight: 95 Kgs -Current Consumption: 11.9 Amps -Power Consumption: 2.6 kW -Air Filter (Material): Vinyl Chloride -Refrigerant: R410a/860g -Operating range(room): 18-45C -Fan Speed: 2 step -Noise level at 3m: 58 dBA -Hose length (Standard): 10m -Hose length (Max.): 30m 不產生室內廢熱,可同時產生熱水,適用於餐廳酒樓廚房,髮型屋熱水洗滌
ICEN Mobile Air-conditioner Model WPW-4000 (水冷式散熱) 冷量:1.8HP -Cooling capacity: 16000BTU/1.4RT/4.7kW -Power Supply: 220V/1P/50Hz -Size(WxDxH): 523x671x1042mm -Weight: Net/Gross 67/73 Kgs -Rated Current : 7.4 Amps -Inlet Condenser Water Flow: a. 2.56 LPM (12C Inlet) b. 3.84 LPM (25C Inlet) c. 6.18 LPM (30C Inlet) -Setting Temp. Room cool mode: 18-30C -Setting Temp. Spot cool mode: 0-30C -Air Filter (Material): None/Vinyl Chloride -Refrigerant: R410a -Ambient Temp. range: 18-50C -Condensate Tank: 12 Liter -Cooling Area: 42 m2 適用於電腦房儀器櫃
ICEN Mobile Air-conditioner Model WMC-2500 (風冷式散熱) 冷量:1.1HP -Cooling capacity: 10000BTU/0.8RT/2.9kW -Power Supply: 220V/1P/50Hz -Size(WxDxH): 435x610x520mm -Weight: 57 Kgs -Current Consumption: 5 Amps -Power Consumption: 1.1 kW -Air Filter (Material): Aluminum/Vinyl chloride -Refrigerant: R410a -Max hot air duct length: 5m -Condensate Tank: Auto pump included -Cooling Area: 25 m2 |
ICEN Mobile Air-conditioner Model WPC-3000
(Air Cooled Type) 冷量:1.3HP -Cooling capacity: 12000BTU/1RT/3.4kW Power Supply: 220V/1P/50Hz -Size(WxDxH): 440x500x965mm -Weight: 60 Kgs -Current Consumption: 7 Amps -Power Consumption: 1.4 kW -Air Filter (Material): Aluminum -Refrigerant: R410a -Max hot air duct length: 5m -Condensate Tank: 12 Liter -Cooling Area: 33 m2 ICEN Mobile Air-conditioner Model WPC-4000
(Air Cooled Type) 冷量:1.8HP -Cooling capacity: 16000BTU/1.3RT/4.7kW -Power Supply: 220V/1P/50Hz -Size(WxDxH): 523x671x1042mm -Weight: 89 Kgs -Current Consumption: 7.5 Amps -Power Consumption: 1.7 kW -Air Filter (Material): Aluminum / Vinyl choride -Refrigerant: R410a -Max hot air duct length: 15m -Condensate Tank: 12 Liter -Cooling Area: 40 m2 Dehumidification Capacity(option): 95ℓ Per 1day based on 30℃ RH80% Humidity ICEN Mobile Air-conditioner Model WPC-5000
(Air Cooled Type) 冷量:2.3HP -Cooling capacity: 21000BTU/1.7RT/6.1kW -Power Supply: 220V/1P/50Hz -Size(WxDxH): 560x620x1245mm -Weight: 90 Kgs -Current Consumption: 11.5 Amps -Power Consumption: 2.3 kW -Air Filter (Material): Aluminum / Vinyl chloride -Refrigerant: R410a -Max hot air duct length: 9 m -Condensate Tank: 12 Liter -Cooling Area: 50 m2 Dehumidification Capacity(option): 120ℓPer 1day based on 30℃RH80% Humidity ICEN Mobile Air-conditioner Model WPC-6000

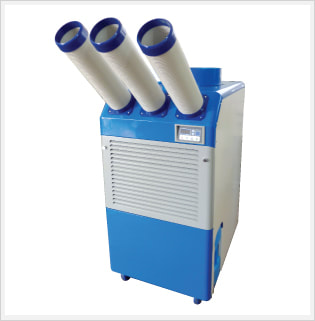

(Air Cooled Type) 冷量:2.8HP Cooling capacity: 25000BTU/2.1RT/7.3kW -Power Supply: 220V/1P/50Hz -Size(WxDxH): 560x620x1245mm -Weight: 92 Kgs -Current Consumption: 12.5 Amps -Power Consumption: 2.5 kW -Air Filter (Material): Aluminum / Vinyl chloride -Refrigerant: R410a -Max hot air duct length: 9 m -Condensate Tank: 12 Liter -Cooling Area: 56 m2 Dehumidification Capacity(option): 130ℓPer 1day based on 30℃RH80% Humidity ICEN Mobile Air-conditioner Model WPC-9000
(Air Cooled Type) 冷量:3.6HP -Cooling capacity: 32000BTU/2.7RT/9.4kW -Power Supply: 220V/1P/50Hz -Size(WxDxH): 660x885x1380mm -Weight: 116 Kgs -Current Consumption: 16.5 Amps -Power Consumption: 3.3 kW -Air Filter (Material): Aluminum / Vinyl chloride -Refrigerant: R410a -Max hot air duct length: 18 m -Condensate Tank: 12 Liter -Cooling Area: 100 m2 Dehumidification Capacity(option): 220ℓPer 1day based on 30℃RH80% Humidity Mobile Air-conditioner Model WPC-15000
(Air Cooled Type) 冷量:6.7HP. -Cooling capacity: 60000BTU/5RT/17.6kW -Power Supply: 380V/1P/50Hz -Size(WxDxH): 735x1310x1520mm -Weight: 300 Kgs -Current Consumption: 14 Amps -Power Consumption: 7.4 kW -Air Filter (Material): Aluminum / Vinyl chloride -Refrigerant: R410a -Max hot air duct length: 30 m -Condensate Tank: Auto pump included -Cooling Area: 170 m2 Remark: WPC-15003(71000BTU) 460V/3/60Hz Dehumidification Capacity(option): 280ℓPer 1day based on 30℃RH80% Humidity ICEN Mobile Air-conditioner Model WPC-23000
(Air Cooled Type) 冷量:8.8HP -Cooling capacity: 83000BTU/7RT/24kW -Power Supply: 380V/1P/50Hz -Size(WxDxH): 735x1310x1520mm -Weight: 345 Kgs -Current Consumption: 21 Amps -Power Consumption: 11 kW -Air Filter (Material): Aluminum / Vinyl chloride -Refrigerant: R410a -Max hot air duct length: 30 m -Condensate Tank: Auto pump included -Cooling Area: 210 m2 Dehumidification Capacity(option): 350ℓPer 1day based on 30℃RH80% Humidity |
